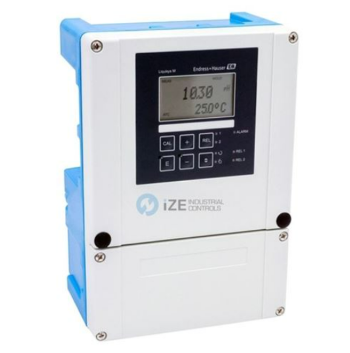

CPM253-MR0005 Endress+Hauser Instruments PH ORP Transmitter Liquisys CPM253

Endress+Hauser CPM253-MR0005 pH/ORP transmitter Liquisys CPM253

SPECIFICATIONS:
1. Sensor Input; Software: MR Memosens, digital; pH(glass/ISFET) ORP basic version
2. Power Supply: 0 230VAC
3. Output: 0 1x 0/4...20mA, primary value
4. Additional Contact: 05 Not selected

Dimensions:

• Panel mounted instrument: IP 54 (front), IP 30 (housing)
• Field instrument: IP 65 / tightness acc. to NEMA 4X
• Panel mounted instrument: 96 x 96 x 145 mm (3.78 x 3.78 x 5.71 inches)
• Mounting depth: approx. 165 mm (6.50")
• Field instrument: 247 x 170 x 115 mm (9.72 x 6.69 x 4.53 inches)

Field of application

Liquisys CPM253 is a standard pH/ORP transmitter for all analog and digital Memosens sensors. It improves your operational safety thanks to continuous plausibility, process and sensor checks. Select from numerous hardware and software modules, such as relays or fieldbus communication, to adapt it exactly to your measuring task. This modularity also allows you to upgrade the transmitter at any time. A simple menu and two-point calibration make configuration and operation fast and easy.

Benefits

1. More operational safety: Continuous process check system, customized alarm configuration, proven Memosens interface for reliable sensor connection.

2. Reliable self-monitoring: Sensor check system for pH glass and reference, calibration plausibility check.

3. Easy to operate and service: Intuitive user interface, hot plug & play with pre-calibrated Memosens sensors, direct access for manual contact control.

4. Reduced maintenance: Automatic cleaning function (with Chemoclean) triggered by alarm or limit switch.

Fit for every application: Numerous extensions, such as P(ID) controller, timer, etc., allow for flexible adaption to all processes.

Related Product Recommendation:

Frequently Asked Questions:

Q:Are the Products Genuine OEM Units?

A: These items have been certified by Achievers Automation Limited to be genuine OEM Units obtained through OEM or independent third-party channels.

CPM253 Endress+Hauser Instruments

Endress+Hauser Instruments CPM253

e&h transmitter

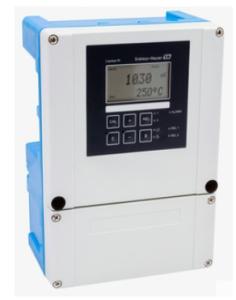

CPM253-MR0005 Endress+Hauser Instruments PH ORP Transmitter Liquisys CPM253 Images
